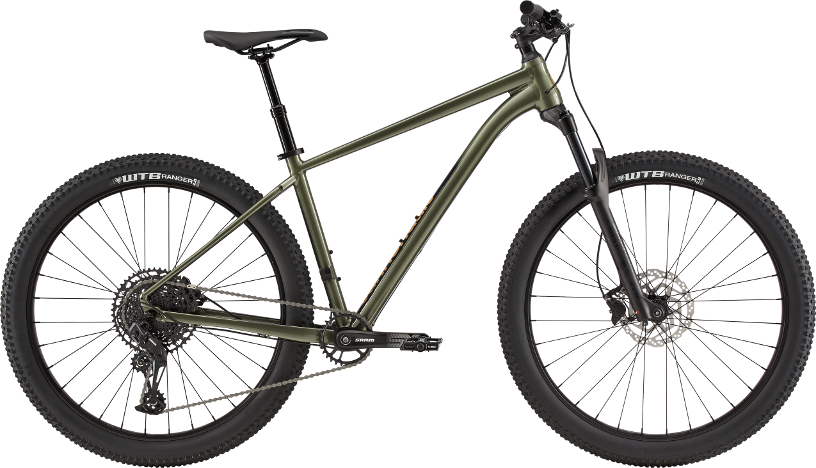

Whatever the trail has in store, Cujo takes it all in stride. With big 27+ tires and stable, confident geometry, it will raise your level and up your game on even the rockiest, nastiest terrain.
27+ wheels combine wide rims with big 2.8" tires for unreal traction and cushiony float on just about any surface the trail can throw your way.
Trail-focused geometry delivers a stable, confident feel that encourages you to let 'er rip.
A tapered head tube, 110x15mm thru-axle front hub and Boost QR rear hub all contribute to Cujo's solid feel and precise handling.
Light, simple 1x drivetrains and hydro discs on all models. Wide range 11-42 cassettes and 30t rings give you a rock-crawling low gear. Wide bars and grippy WTB Ranger tires for control
- SmartForm C2 aluminum frame
- RockShox Judy Silver TK 120mm-travel suspension fork
- WTB STX i35 rims with WTB Ranger Comp tires
- 12-speed SRAM SX Eagle components
- TranzX dropper seatpost
- Shimano hydraulic disc brakes
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Wider than standard yet narrower than fat, plus-size rims and tires hit the sweet spot in grip, stability, and speed, giving you more confidence on technical terrain. Compared to a standard tire you’ll feel grip in places you wouldn’t expect thanks to a bigger contact patch and greater rollover clearance. More air volume allows lower tire pressures which softens bumps and increases float on sand or snow. Whether you’re a novice or an expert, the benefits of plus-size tires and rims will amplify your mountain biking fun.
|Frame||SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73|
|Fork||RockShox Judy Silver TK, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset|
|Headset||Semi Integrated, 1-1/8" to 1-1/2"|
Front: 15x110mm thru-axle
Rear: 12x148mm thru-axle
|Rims/Wheels||WTB STX i35, 32h|
|Spokes||Stainless Steel, 14g|
|Tires||WTB Ranger Comp, 27.5 x 2.8", DNA Compound|
|Crankset||SRAM SX Eagle|
|Bottom Bracket||Truvativ Power Spline|
|Chain||SRAM SX Eagle, 12-speed|
|Rear Derailleur||SRAM SX Eagle|
|Cassette/Rear Cogs||SRAM PG-1210, SX Eagle, 11-50, 12-speed|
|Shifters||SRAM SX Eagle, 12-speed|
|Handlebars||Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm|
|Tape/Grips||Cannondale Locking Grips|
|Stem||Cannondale 3, 6061 Alloy, 31.8, 7°|
|Brake Levers||Shimano MT200 hydro disc|
|Brakes||Shimano MT200 hydro disc, 180/160mm RT10 rotors|
|Saddle||Cannondale Stage 3|
|Seat Post||TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL)|
* Subject to change without notice.
