Details
POWER UP YOUR WAY.

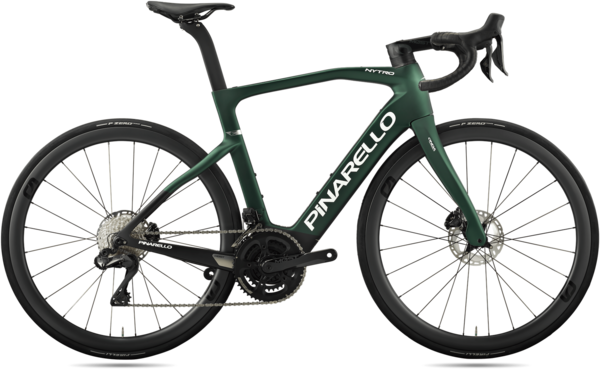

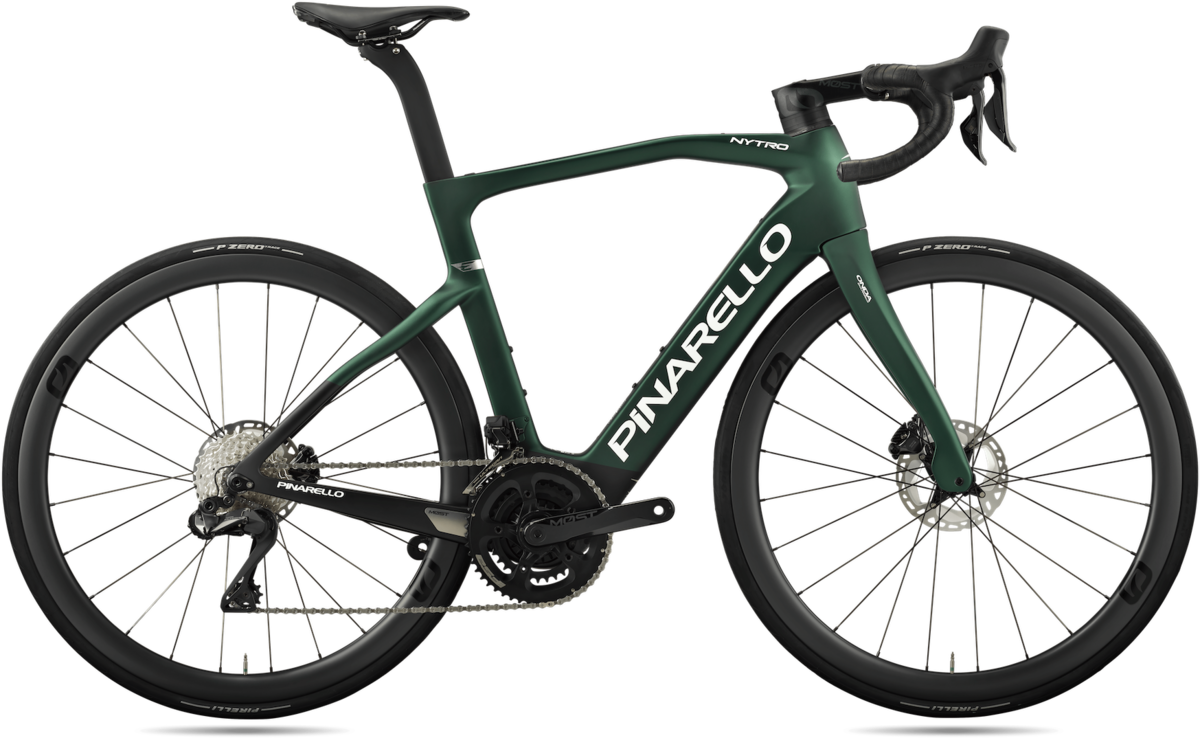

The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.
- ONDA FORK
A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
- ASYMMETRIC FRAME
Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
- TQ-HPR50 DRIVE UNIT
The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.
- CARBON T900 UD
The right balance between reactivity, dampening capabilities and lightness for competition.
- TQ Electrical System Safety
compliant with UL certification UL 2849
- TQ Batteries Safety
compliant with UL certification UL 2054, UL2849
- TQ Charger Safety
compliant with UL certification UL 1012, UL 1310, UL/IEC 60335-2- 29, UL/IEC 60950-1, UL/IEC 62368-1
CE | 450 | 488 | 510 | 535 | 555 | 575 |
---|---|---|---|---|---|---|
CC | 460 | 500 | 530 | 550 | 575 | 600 |
L | 515 | 532 | 545 | 560 | 580 | 595 |
A [°] | 74.5 | 74 | 73.7 | 73.4 | 73 | 72.9 |
B [°] | 71.75 | 72 | 72.25 | 72.5 | 72.75 | 73 |
P | 420 | 420 | 420 | 420 | 420 | 420 |
T | 130 | 140 | 151 | 170 | 200 | 225 |
D | 72 | 72 | 72 | 72 | 72 | 72 |
R | 47 | 47 | 47 | 47 | 47 | 47 |
G | 373 | 373 | 373 | 373 | 373 | 373 |
REACH | 358.4 | 369.7 | 377.5 | 384.2 | 391.4 | 398 |
STACK | 545.4 | 555.8 | 567.2 | 586.2 | 615.8 | 640.6 |
Specs
Frame | TorayCa T900 UD, TiCR™ Cable Routing |
---|---|
Fork | Nytro onda carbon fork with forkflap™, tapered head tube |
Wheels | MOST Ultrafast 40* |
Axles | Pinarello Axle 12x100 & 12x142, Tool Free Removal |
Front Derailleur | Shimano Ultegra Di2 FD R8150 12S |
Rear Derailleur | Shimano Ultegra 12S |
Cassette/Freewheel | Shimano Ultegra 12S |
Chain | Shimano Ultegra 12S |
Brakes | Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor |
Handlebars | MOST Jaguar XA TiCR |
Stem | MOST Tiger Aero Alu TiCR |
Pedals | Sold Separately |
Motor | TQ-HPR50 Drive Unit |
Battery | 360 Wh Integrated Battery |
Controller/Display | Integrated and Compatible with Ant+ Bike Computers |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Electro Sky / 46cm / 700c | 799439649200 | C1758174163-31779 | |
Electro Sky / 50cm / 700c | 799439650145 | C1758174163-31780 | |
Electro Sky / 53cm / 700c | 799439650206 | C1758174163-31781 | |
Electro Sky / 55cm / 700c | 799439650213 | C1758174163-31782 | |
Electro Sky / 57.5cm / 700c | 799439650220 | C1758174163-31783 | |
Electro Sky / 60cm / 700c | 799439650237 | C1758174163-31784 | |
Electro Green / 46cm / 700c | 799439650244 | C1758174163-31785 | |
Electro Green / 50cm / 700c | 799439650251 | C1758174163-31786 | PIN334364240 |
Electro Green / 53cm / 700c | 799439650268 | C1758174163-31787 | |
Electro Green / 57.5cm / 700c | 799439650282 | C1758174163-31789 | |
Electro Green / 60cm / 700c | 799439650299 | C1758174163-31790 |
