Trek Domane SLR 9 Gen 4

Trek Domane SLR 9 Gen 4
  • Color: Crystal White
  • Color: Deep Smoke
  • Color: Juniper
  • Color: Metallic Red Smoke to Blue Smoke Fade
  • Color: Metallic Red Smoke to Red Carbon Smoke
$11,999.99 - $12,799.99
$12,799.99
Please select options
Order now and pick up in-store for free

Details

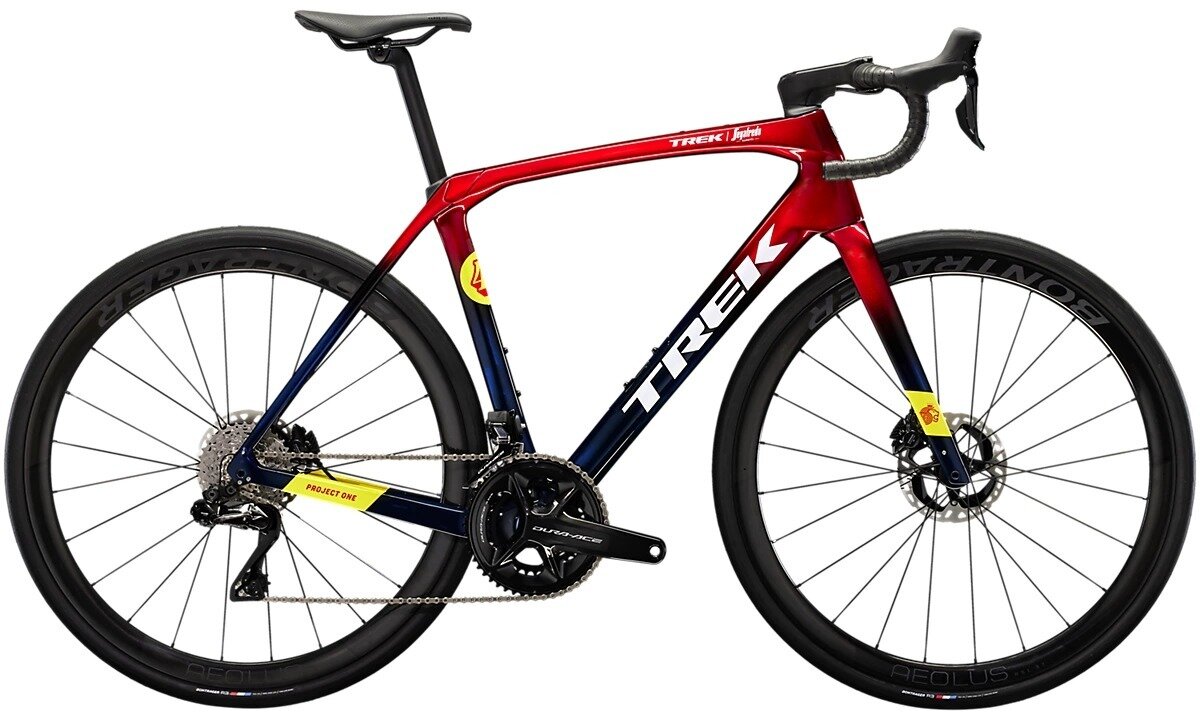

Domane SLR 9 is our top ultralight carbon endurance road bike decked out with the highest-end parts made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless Shimano Dura-Ace Di2 electronic drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.

It's right for you if...
You want the most capable bike on the tarmac that doesn't back down from endurance race days, and you're not willing to settle for less. You're looking for the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic Shimano Dura-Ace Di2 drivetrain for fast, precision shifting in any condition.

The tech you get
An ultralight and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage, and top tube mounts. It's equipped with a wireless Shimano 2x12 wireless Dura-Ace Di2 electronic drivetrain, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.

The final word
Our highest-end Domane carbon frame, with the meticulous shifting that comes only from wireless Shimano Dura-Ace. You're getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.

Why you'll love it
- The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- Shimano's cream of the crop Dura-Ace Di2 drivetrain provides the pristine and crisp shifts you need, while keeping your setup lightweight
- Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

Sizes:
SizeRider
Height
Inseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"
81 - 85 cm
32" - 33"
58

180 - 185 cm
5'11" - 6'1"

84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"

Geometry

Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A- Seat tube 42 45 47.5 50 52.5 54.8 56.7 58.6
B- Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C- Head tube length 11 13 14.5 16 17.5 19.5 22 24.5
D- Head angle 71.0° 71.1° 71.3° 71.3° 71.9° 72.0° 72.1° 72.1°
E- Effective top tube 50.9 51.9 53 54.2 55.4 56.7 57.9 59.3
G- Bottom bracket drop 8 8 8 8 7.8 7.8 7.5 7.5
H- Chainstay length 42 42 42 42 42 42.5 42.5 42.5
I- Offset 5.3 5.3 5.3 5.3 4.8 4.8 4.8 4.8
J- Trail 6.1 6 5.9 5.9 6.1 6 5.9 5.9
K- Wheelbase 98.6 99.6 100.3 101 100.8 102.2 103.2 104.2
L- Standover 68.6 71.6 73.5 75.4 77.6 79.6 81.7 83.5
M- Frame reach 36.4 36.8 37.1 37.4 37.7 38 38.3 38.6
N- Frame stack 52.7 54.6 56.1 57.5 59.1 61.1 63.2 65.6
Stem length 70 80 90 90 100 100 110 110
Saddle rail height min
(w/short mast)
55.5 58.5 61.5 64 67 69 71 73
Saddle rail height max
(w/short mast)
62 65 68 70.5 73.5 75.5 77.5 79.5
Saddle rail height min
(w/tall mast)
58.5 61.5 64.5 67 70 72 74 76
Saddle rail height max
(w/tall mast)
65 68 71 73.5 76.5 78.5 80.5 82.5

Specs

Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Wheels Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Axles Bontrager Switch thru axle, removable lever
Tires Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Bottom Bracket Praxis, T47 threaded, internal bearing
Crankset Size: 47 Shimano Dura-Ace R9200, 50/34, 165mm length
Size: 50, 52 Shimano Dura-Ace R9200, 50/34, 170mm length
Size: 54, 56 Shimano Dura-Ace R9200, 50/34, 172.5mm length
Size: 58, 60, 62 Shimano Dura-Ace R9200, 50/34, 175mm length
Shifters Shimano Dura-Ace R9270 Di2, 12 speed
Front Derailleur Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear Derailleur Shimano Dura-Ace R9250 Di2, 34T max cog
Cassette/Freewheel Shimano Dura-Ace R9200, 11-34, 12 speed
Chain Shimano Dura-Ace/XTR M9100, 12 speed
Rotors Shimano MT900, centerlock, 160mm
Handlebars Size: 47 Bontrager Pro IsoCore VR-SF, 38cm
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm
Tape/Grips Bontrager Supertack Perf tape
Stem Size: 47 Bontrager RCS Pro, 7 degree, 70mm length
Size: 50 Bontrager RCS Pro, 7 degree, 80mm length
Size: 52, 54 Bontrager RCS Pro, 7 degree, 90mm length
Size: 56, 58 Bontrager RCS Pro, 7 degree, 100mm length
Size: 60, 62 Bontrager RCS Pro, 7 degree, 110mm length
Seatpost Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF2 shaping, 20mm offset, 280mm length
Size: 58, 60, 62 Domane carbon seatpost, KVF2 shaping, 20mm offset, 320mm length
Saddle Size: 47, 50, 52 Bontrager P3 Pro, short nose, 155mm width
Size: 54, 56, 58, 60, 62 Bontrager P3 Pro, short nose, 145mm width
Pedals Sold separately
Accessories & Extras Charging cable included, Bontrager BITS Internal Frame Storage Bag

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Crystal White / 47cm 601842858356 5281188
Trek Black / 47cm 601842924938 5314852
Axinite Flip/Trek Black / 47cm 601842881927 5311936
Crystal White / 50cm 601842858349 5281190
Axinite Flip/Trek Black / 50cm 601842881910 5311937
Crystal White / 52cm 601842858332 5281192
Axinite Flip/Trek Black / 52cm 601842881903 5311938
Crystal White / 54cm 601842858325 5281194
Axinite Flip/Trek Black / 54cm 601842881897 5311939
Crystal White / 56cm 601842858318 5281196
Axinite Flip/Trek Black / 56cm 601842881880 5311940
Crystal White / 58cm 601842858301 5281198
Axinite Flip/Trek Black / 58cm 601842881873 5311941
Crystal White / 60cm 601842858295 5281200
Axinite Flip/Trek Black / 60cm 601842881866 5311942
Crystal White / 62cm 601842858288 5281202
Axinite Flip/Trek Black / 62cm 601842881859 5311943
Deep Smoke / 47cm 601842858516 5281156
Deep Smoke / 50cm 601842858509 5281158
Deep Smoke / 52cm 601842858493 5281160
Deep Smoke / 54cm 601842858486 5281162
Deep Smoke / 56cm 601842858479 5281164
Deep Smoke / 58cm 601842858462 5281166
Deep Smoke / 60cm 601842858455 5281168
Deep Smoke / 62cm 601842858448 5281170
Juniper / 47cm 601842858196 5281219
Juniper / 50cm 601842858189 5281221
Juniper / 52cm 601842858172 5281223
Juniper / 54cm 601842858165 5281225
Juniper / 56cm 601842858158 5281227
Juniper / 58cm 601842858141 5281229
Juniper / 60cm 601842858134 5281231
Juniper / 62cm 601842858127 5281233
Metallic Red Smoke to Blue Smoke Fade / 47cm 601842858431 5281172
Metallic Red Smoke to Blue Smoke Fade / 50cm 601842858424 5281174
Metallic Red Smoke to Blue Smoke Fade / 52cm 601842858417 5281176
Metallic Red Smoke to Blue Smoke Fade / 54cm 601842858400 5281178 TRE315945414
Metallic Red Smoke to Blue Smoke Fade / 56cm 601842858394 5281180
Metallic Red Smoke to Blue Smoke Fade / 58cm 601842858387 5281182
Metallic Red Smoke to Blue Smoke Fade / 60cm 601842858370 5281184
Metallic Red Smoke to Blue Smoke Fade / 62cm 601842858363 5281186
Metallic Red Smoke to Red Carbon Smoke / 47cm 601842858271 5281204
Metallic Red Smoke to Red Carbon Smoke / 50cm 601842858264 5281206
Metallic Red Smoke to Red Carbon Smoke / 52cm 601842858257 5281208
Metallic Red Smoke to Red Carbon Smoke / 54cm 601842858240 5281210
Metallic Red Smoke to Red Carbon Smoke / 56cm 601842858233 5281211
Metallic Red Smoke to Red Carbon Smoke / 58cm 601842858226 5281213
Metallic Red Smoke to Red Carbon Smoke / 60cm 601842858219 5281215
Metallic Red Smoke to Red Carbon Smoke / 62cm 601842858202 5281217
Trek Black / 50cm 601842924921 5314853
Trek Black / 52cm 601842924914 5314854
Trek Black / 54cm 601842924907 5314855
Trek Black / 56cm 601842924891 5314856
Trek Black / 58cm 601842924884 5314857
Trek Black / 60cm 601842924877 5314858
Trek Black / 62cm 601842924860 5314859
